Modular Crypto Exchanges: The New Blueprint for Building Customizable Trading Platforms

A practical blueprint for exchange operators

Most exchanges started as one big lump of code. Wallets, trading, KYC, payouts, everything tied together. It worked back when there were only a few thousand users, but now it’s a nightmare to maintain.

Fix one thing and something else breaks. Add a new blockchain and the backend falls apart. Monolithic systems are brittle and hard to scale. That’s why newer exchanges are pulling everything apart into smaller, focused parts that connect through APIs. That’s modular design in practice: less glue, more freedom.

‍

Core idea (why modular vs monolith)

• Monoliths are fast to ship but fragile at scale: one codebase, shared deploys, tight coupling. Small change → big blast radius.
• Modular setups isolate concerns: each part ships on its own schedule, can be swapped out, and fails independently.

‍

Business upside: faster launches, safer upgrades, targeted scaling (pay for what’s hot), and fewer full‑site incidents.

‍

Objective

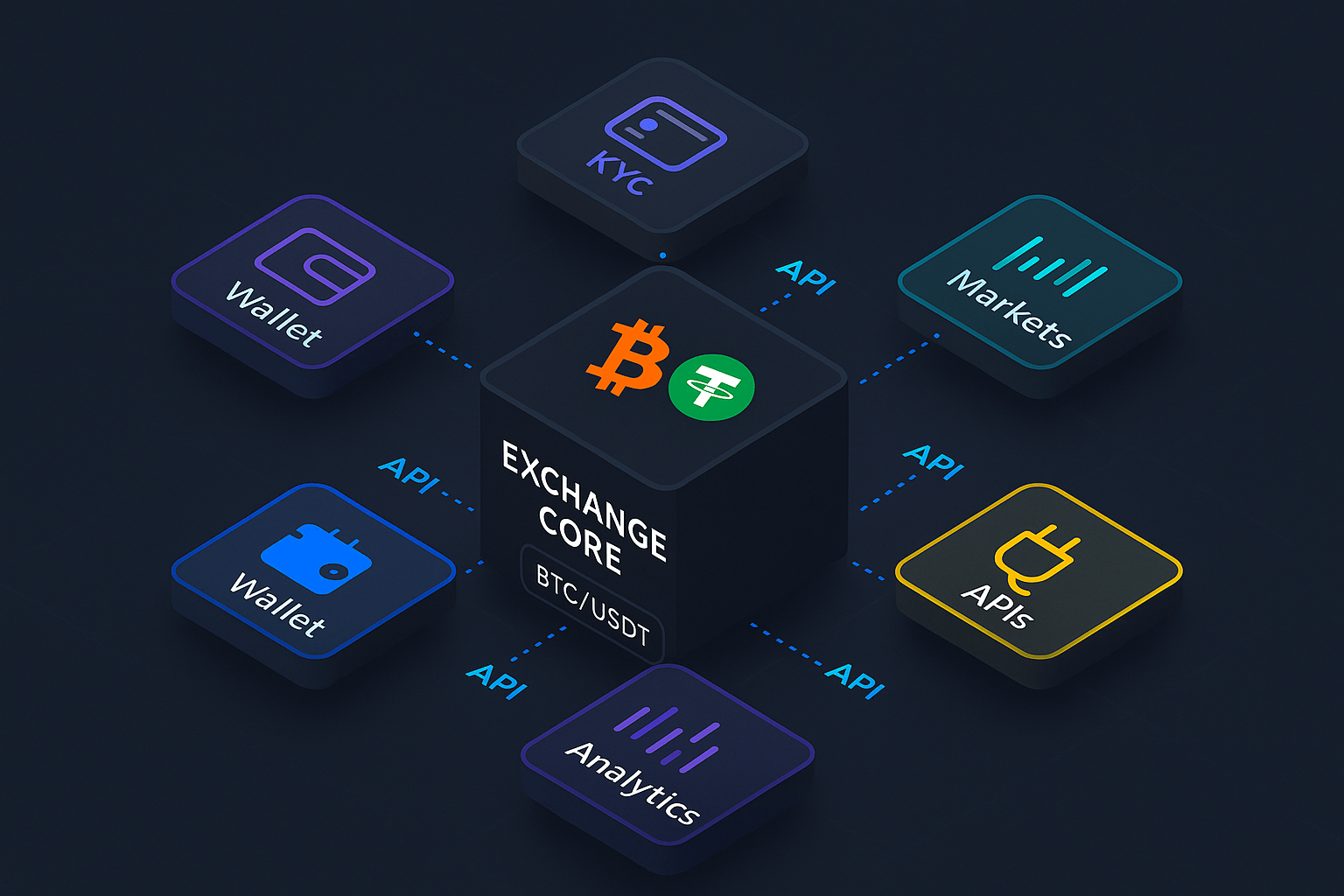

A modular exchange is built from individual components: wallet, trading engine, liquidity, frontend, compliance, and so on. Each runs on its own and talks through APIs. You can replace one without shutting down the whole operation.

‍

‍

It’s like maintaining a car. When the brakes wear out, you don’t replace the engine. Same logic here.

Traditional monolithic systems are quick to start but slow to evolve. Modular setups take a little more effort at the start but save huge time later. It’s the difference between a shortcut and an actual foundation.

• Launch and operate an exchange that’s easier to upgrade, safer to maintain, and cheaper to scale by adopting a modular architecture (a scalable crypto exchange design).

‍

Who this is for

• Business and product leaders shaping the platform roadmap.
• Engineering/ops teams that own reliability and deployment.
• Enterprizes looking to step up their security as they scale

‍

Speed. Scale. Sanity. Modularity lets developers push updates without taking the system offline. Operators can swap liquidity sources, change payment providers, or adjust KYC vendors without rebuilding from scratch.

Running costs drop over time too. You scale only what’s used. The wallet module might handle heavy blockchain load while the frontend module just sits quietly. No reason to overbuild or overpay for unused capacity.

And reliability improves. If one module crashes, it doesn’t take everything down with it. It restarts, logs the issue, and life goes on.

‍

‍

The modules (and what they include)

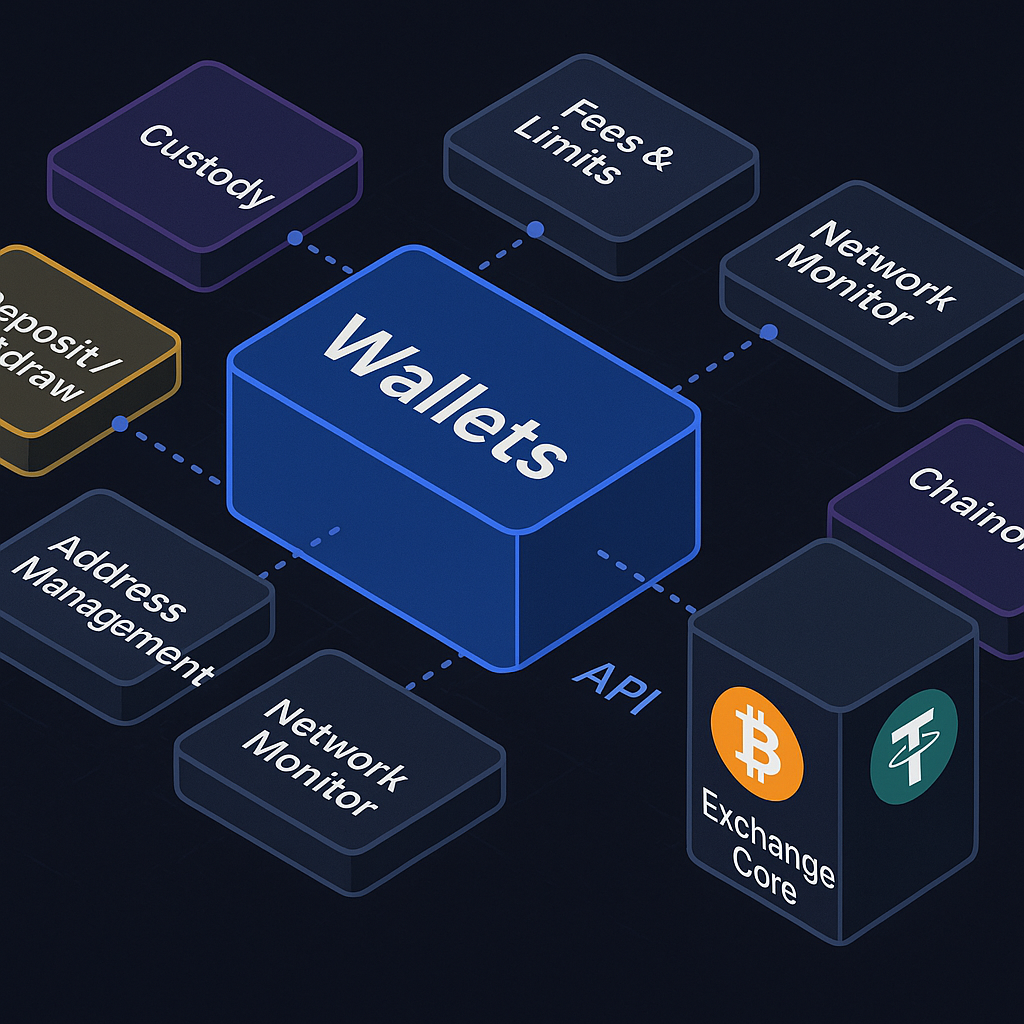

• Wallet/Treasury: on‑chain IO, deposits, withdrawals, fee management.

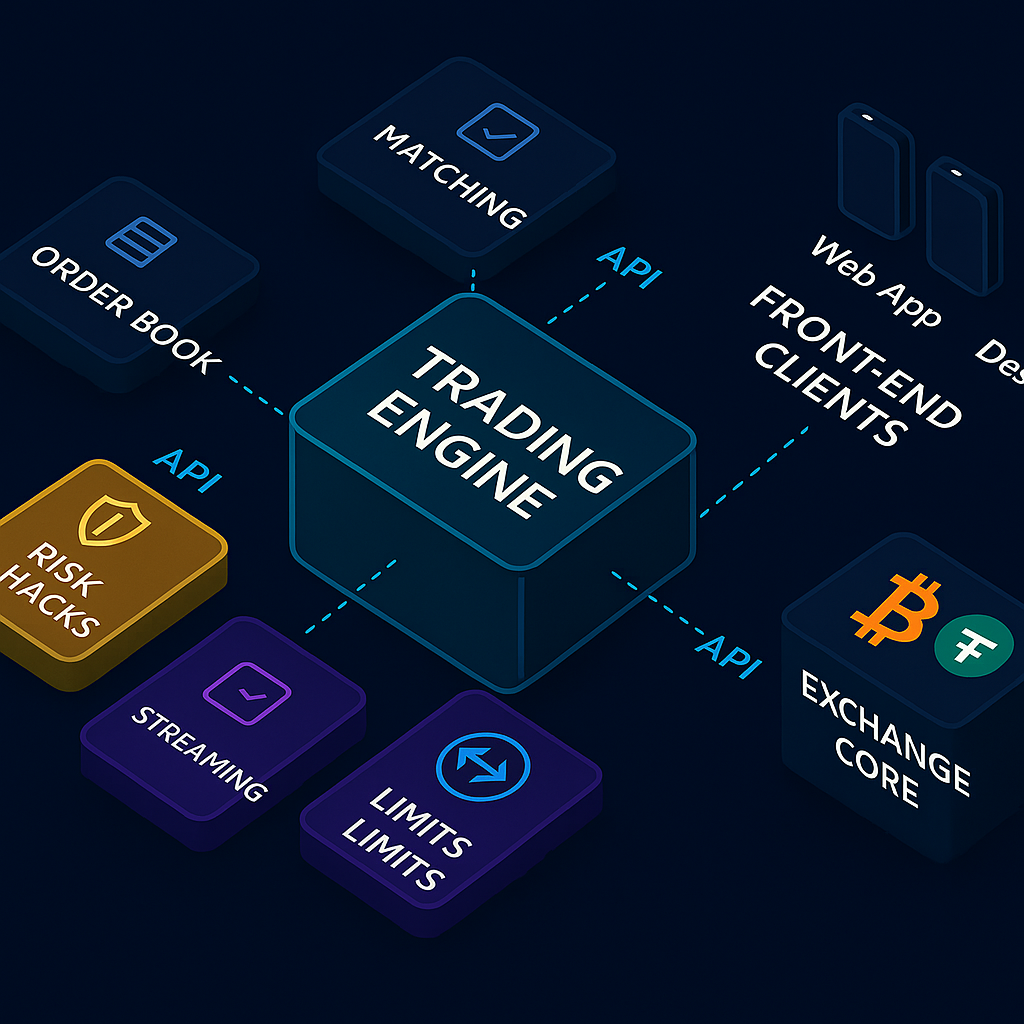

• Trading Engine: order book, matching, risk checks.
• Liquidity: market‑making bots, external connectors, pricing.
• Compliance: KYC/KYB, sanctions screening, Travel Rule.
• Frontend & Admin: operator UI, customer app, dashboards.
• Settlement/Accounting: ledger, reconciliation, reporting.

‍

‍

Rule of thumb: a module owns a clear state and an API. If two teams fight over the same state, you don’t have a real boundary yet.

Together, these pieces form a composable exchange platform you can scale and swap over time.

‍

Decision rules (use these to stay honest)

• One owner per module. If two teams deploy to it, it’s not a module, it’s shared glue.
• APIs over shared databases. Data flows through calls or events; avoid cross‑module table reads.
• Swapability test. If you can’t replace a module without rewriting others, the boundary is wrong.
• Blast‑radius check. A failure in one module should degrade features, not take down the exchange.
• Golden path. For each user flow (deposit → trade → withdraw), list exactly which modules touch it and where it can fail.

‍

‍

Migration plan (monolith → modular)

• Front the monolith with an API. Treat the legacy app as a module. Add observability.
• Split Wallet/Treasury first. High risk, high ROI. Move deposits/withdrawals to a separate service with its own queue and keys.
• Extract the Trading Engine. Give it an order entry API; keep risk checks local to the engine.
• Peel Liquidity. Move bots/connectors out of the engine process.
• Separate Compliance. Decouple KYC vendors, screening, and Travel Rule as pluggable steps.
• Carve out Accounting. Stand up a ledger and reconciliation service; publish events from other modules.

‍

Document every new API (auth, rate limits, versioning, timeouts, idempotency). Without clear contracts, you’ve just created micro‑spaghetti.

‍

Implementation references (HollaEx®):

• Bank integration → Docs — Wallet/Treasury
  · Specific flows: Handling Deposits, Handling Withdrawals
• Order entry & market data boundaries → Docs — Trading Engine
• Vendor‑swappable KYC & screening → Docs — Compliance/KYC
• Public/Private endpoints & versioning → API Reference
• Example service layout & scripts → GitHub — HollaEx Kit

‍

‍

Reliability & risk controls (don’t skip these)

• Backpressure & rate limits: Stop abuse and prevent overwhelmed modules from cascading failures.
• Queues & idempotency: All money‑moving paths must be retry‑safe.
• Health checks & circuit breakers: Prefer quick “fail + fallback” to silent timeouts.
• Per‑module dashboards: Latency, error rates, throughput, and dependency health.
• Runbooks: One page per module: objectives, alerts, and rollback.

‍

Metrics that matter (business + tech)

• Launch speed: time from spec to production per module.
• Upgrade safety: % of deploys done without global downtime.
• Cost to scale: infra per module vs overall volume.
• Incident blast radius: modules affected per incident.
• User outcomes: deposit success rate, p95 withdrawal time, trade reject rate.

‍

Pitfalls (and how to dodge them)

• Too many tiny services. Start with a few big modules; split only when a boundary is obvious.
• Shared DBs and hidden coupling. Use messages or APIs, not side‑door reads.
• Version drift. Keep a registry of module versions; deploy compatible sets.
• No observability. If you can’t see which module failed, modularity won’t save you.

‍

Examples

• iDenfy allows crypto business operators to onboard users with ease, while maintaining secure personal data storage.‍
• Octobot provides market making business bots to keep your orderbooks full
• HollaEx® runs modular in production: wallet/treasury, trading engine, and frontend are separate. Operators can change designs, assets, and liquidity sources without touching the core. It’s a white‑label crypto exchange platform with an open‑source crypto exchange architecture.‍

‍

Related playbooks

• Mint vs. Burn vs. Transfer: A Treasury Rule for Exchange Operators — classify deposits, withdrawals, and internal moves so supply always matches collateral.

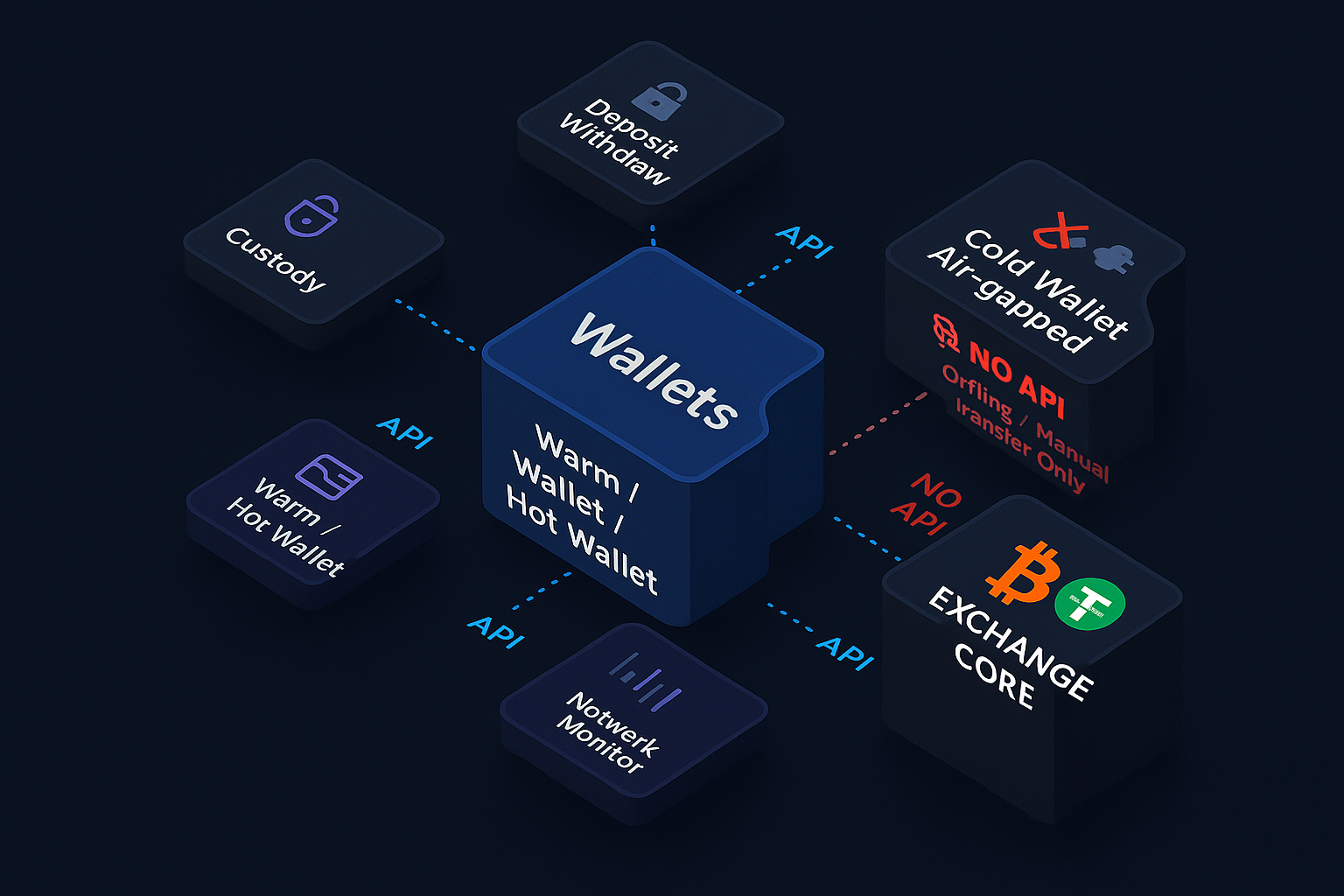

• Hot, Cold, and Sweeps: Setting Treasury Thresholds — how much to keep hot, when to sweep, fee caps, and alerts.


‍

Closing thoughts

Often used as a buzzword, "Modularity", is actually an important aspect of crypto exchange infrastructure. The very nature of the blockchain being a totally separated financial system illustrates this point. Modularity is a big determining factor in how serious platforms scale without breaking down. Start with clear module boundaries, APIs, and ownership. Then keep the feedback loop tight: measure, ship, and iterate.

If you looking to start, consider using an existing platform that is alraeady well modularized with a decade of development in blockchain based finance here.
